01 / Strength
High specific strength
Strong material performance relative to weight supports a lighter rim architecture without treating strength as an afterthought.
Advanced materials · Carbon rim

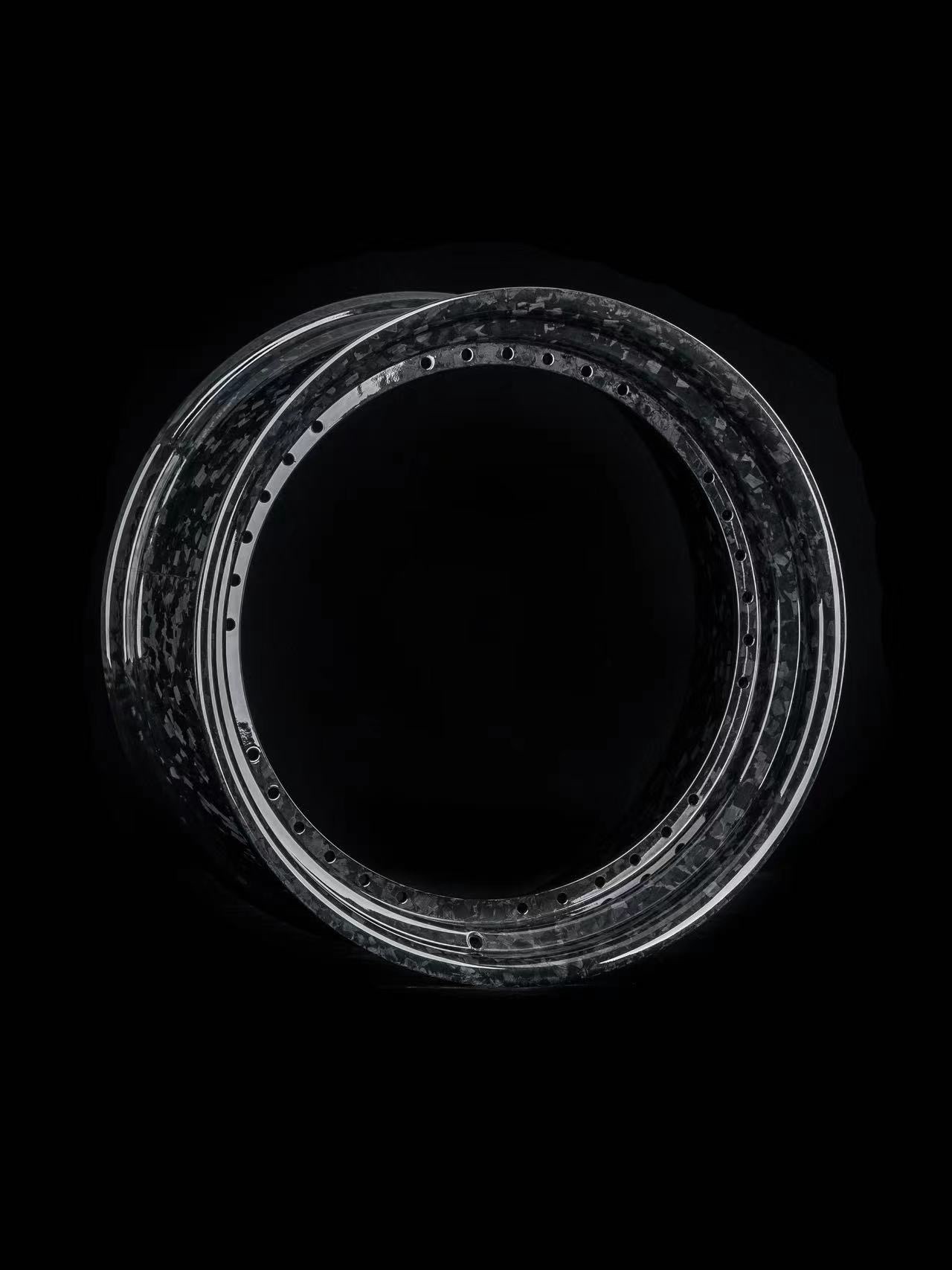

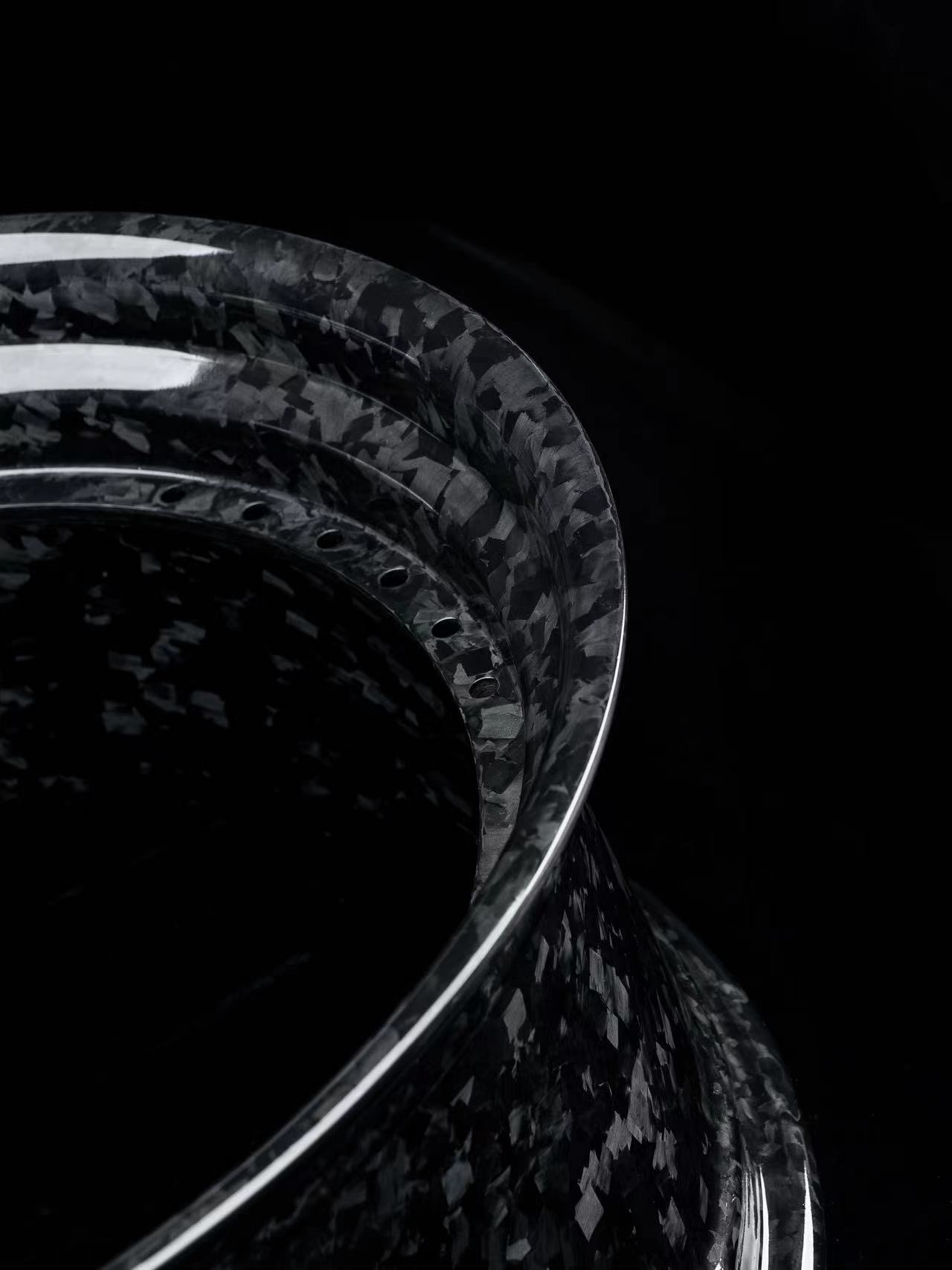

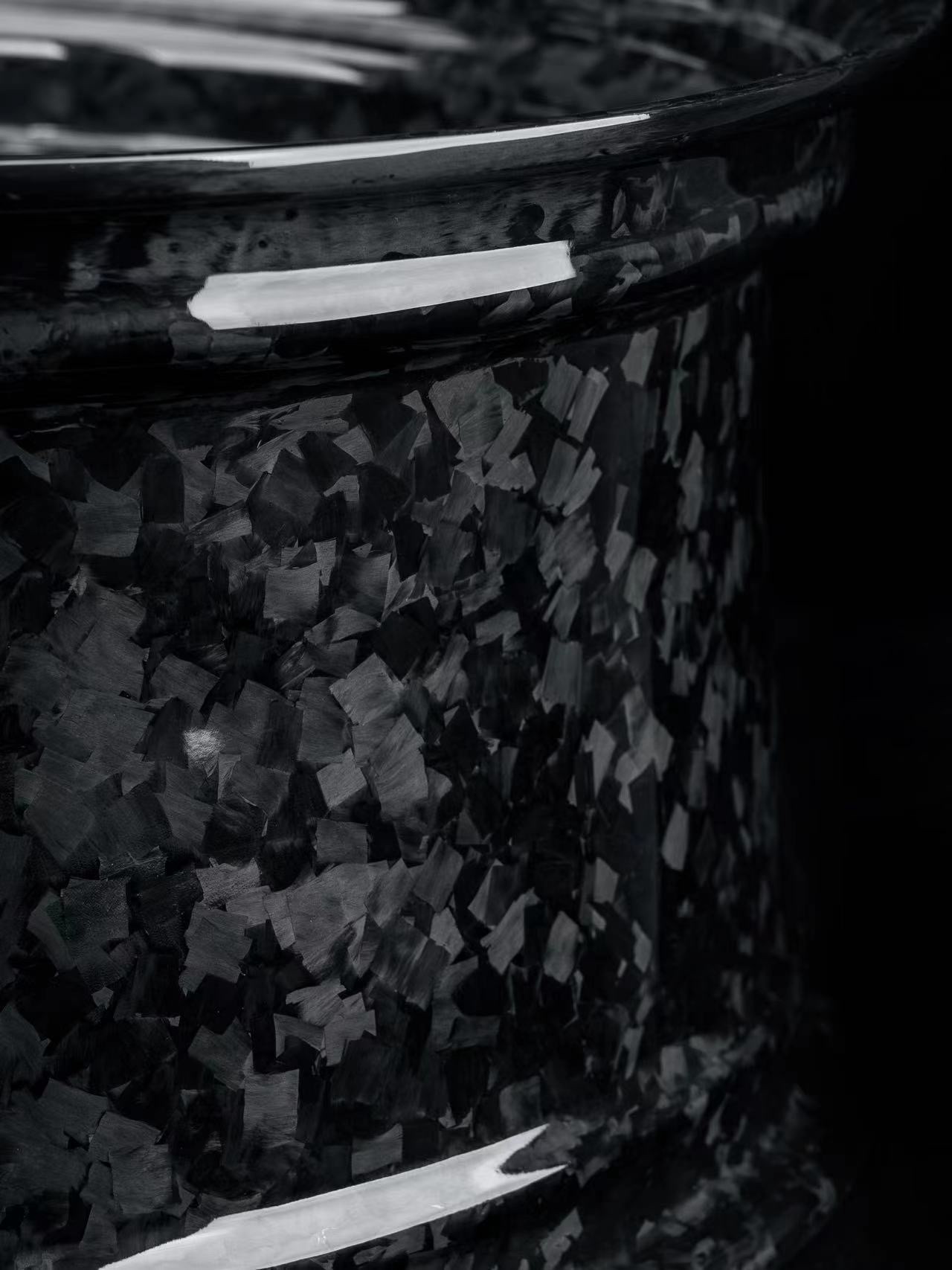

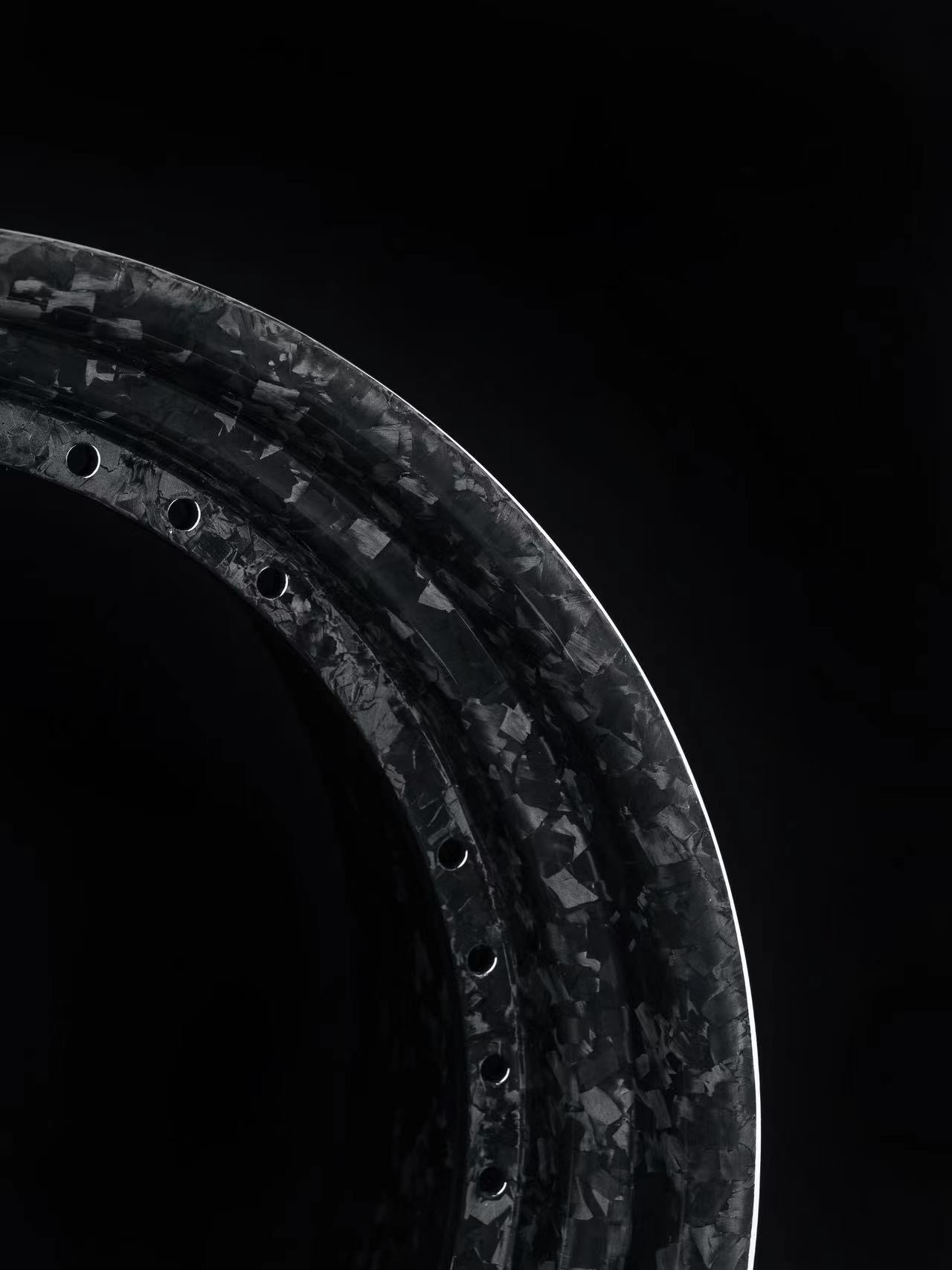

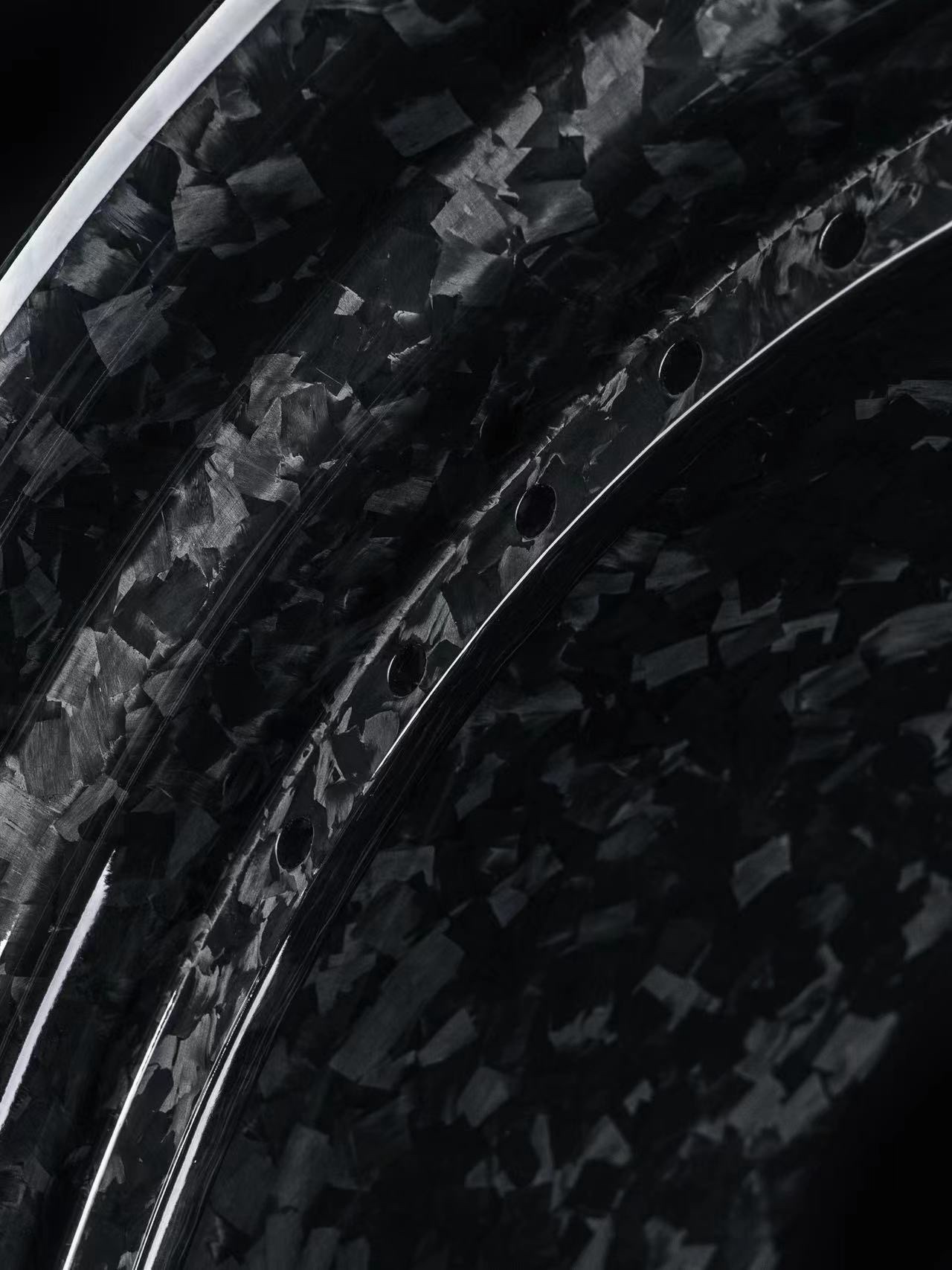

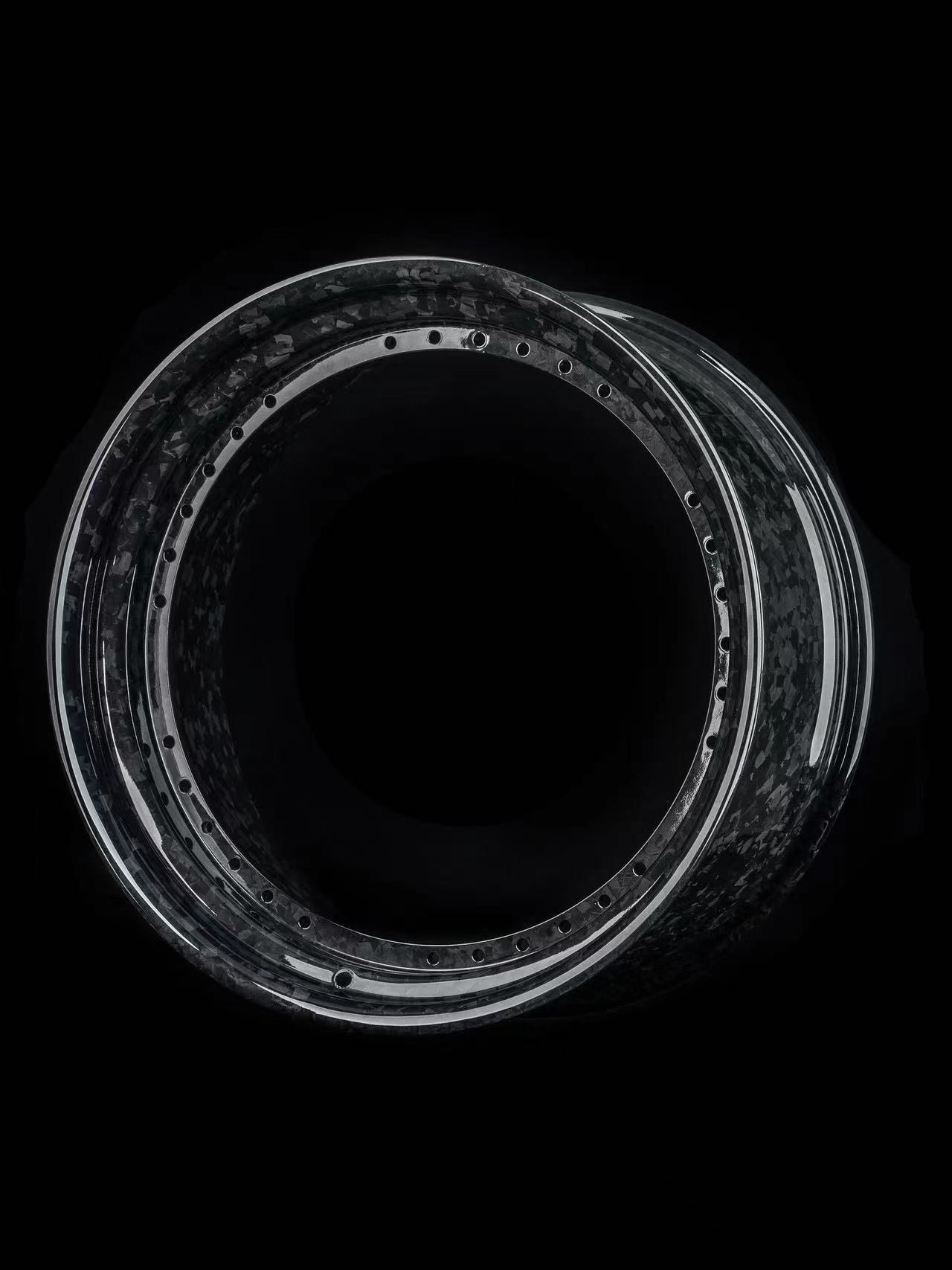

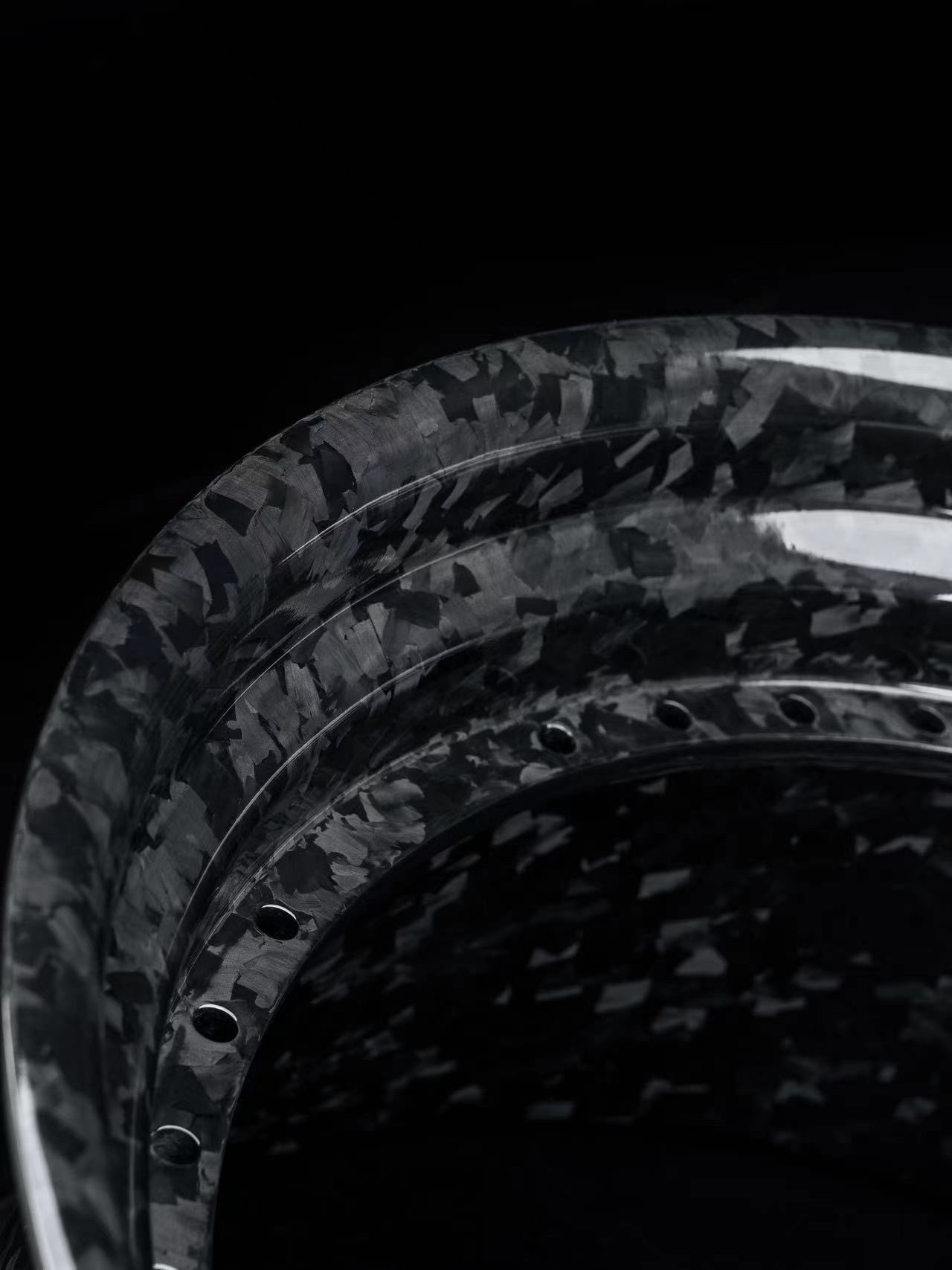

Carbon control.
A carbon-fibre rim system developed around strength, thermal stability and lower rotational mass—engineered to work with selected KOYA forged centre designs.
- Toray prepregT700 & T800 lay-up
- FEA analysed100% rim simulation
- VIA standardControlled assembly
- 100% inspectedBalance & runout data
Material engineering
Composite engineering, built around the wheel.
KOYA Carbon combines a carbon-fibre rim with a selected forged centre to create a wheel system focused on response, strength and durability. The rim design is developed by aluminium wheel, rim and carbon-fibre engineers, then analysed and inspected before final application.
Carbon rim · Forged centreKOYA KT Series
Technical architecture
Engineered as a complete system.
The material, lay-up, centre design and final assembly must work together. KOYA’s process brings simulation, prepreg construction and inspection into one controlled path.
- 01Senior aluminium wheel, rim and carbon engineers contribute to the design.
- 02Every rim is analysed using FEA computer simulation.
- 03Toray T700 and T800 prepreg is used in the carbon lay-up.
- 04Rims are assembled in accordance with Japanese VIA test standards.
Product advantages
Strength where it matters. Stability where it counts.
Carbon fibre brings a distinct material profile to the rim: high strength, controlled thermal behaviour and resistance to fatigue and harsh environments.
02 / Thermal
Heat resistance
Excellent heat and thermal-shock resistance supports stability through changing operating temperatures.
03 / Response
Low thermal expansion
A low thermal expansion coefficient and low heat capacity help maintain controlled material behaviour.
04 / Durability
Fatigue & corrosion resistance
Carbon fibre offers strong fatigue characteristics and resistance in demanding environmental conditions.
Material comparison
Carbon fibre versus a forged barrel.
The figures below reproduce the material comparison published on the existing KOYA Carbon page, presented here in a clearer format.
Feature
Forged barrel
Carbon fibre
Tensile strengthPublished value
280–310
2650
Compressive strengthPublished value
260–280
1570
Comparison figures are reproduced from KOYA’s existing Carbon page. Final wheel performance and weight reduction depend on the complete wheel design, size and vehicle application; confirm application-specific data with KOYA.
Controlled process
Designed, analysed, assembled, inspected.
A repeatable process connects the material specification to the finished wheel that reaches the vehicle.
Step 01
Engineer
Wheel, rim and composite engineers develop the rim and centre as a compatible system.
Step 02
Analyse
FEA computer simulation is used to analyse the rim design before final application.
Step 03
Assemble
Final assembly follows controlled requirements aligned with Japanese VIA test standards.
Step 04
Inspect
Dynamic balance, runout and other production data are checked for every completed rim.
Carbon rim testing
See the engineering under test.
Explore KOYA’s video channel for wheel development, testing and application footage from the Australian team.
Visit KOYA YouTubeSizes & reference pricing
Choose the diameter. Engineer the application.
Current KOYA Carbon pricing is organised by diameter. Listed prices include GST; freight is additional. Confirm final specification before ordering.
Carbon rim
20 inch
Reference priceAUD $28,000
- 20×8.5
- 20×9
- 20×9.5
- 20×10
- 20×10.5
- 20×11.5
- 20×12
Inc GST · Freight additional
Select styleCarbon rim
21 inch
Reference priceAUD $29,000
- 21×9.5
- 21×10
- 21×10.5
- 21×11.5
- 21×12
Inc GST · Freight additional
Select styleCarbon rim
22 inch
Reference priceAUD $30,000
- 22×9.5
- 22×10.5
- 22×11
- 22×11.5
- 22×12
Inc GST · Freight additional
Select styleCarbon rim
23 inch
Reference priceAUD $31,000
- 23×10
Inc GST · Freight additional
Select styleBefore you order
Carbon rim questions.
Final availability is application-specific. KOYA can confirm the centre design, size and fitment that suit your vehicle.
Do the listed prices include GST and freight?
The published Carbon prices include GST. Freight is additional and should be confirmed with KOYA for your delivery location.
How much weight does a carbon rim save?
Weight reduction varies with diameter, width, forged centre design and the final vehicle application. Ask KOYA for confirmed application-specific data rather than relying on a generic percentage.
Can I choose the forged centre design?
Selected KOYA two-piece forged centre designs can be considered for a Carbon application. Browse the KT Series, then confirm carbon-rim compatibility with the KOYA team.
How is the final fitment confirmed?
Provide your vehicle, brake package and desired wheel specification through the Fitment Check Form. KOYA can then review size, clearance and centre compatibility before an order is finalised.
Build your Carbon application
Start with the car. Engineer the wheel.
Tell KOYA what you drive, your brake package and what you want from the wheel. The team can help define the right Carbon rim and forged centre combination.
